CADViewer Online Demo Resources

Upload your own drawings and test some typical CADViewer use-cases

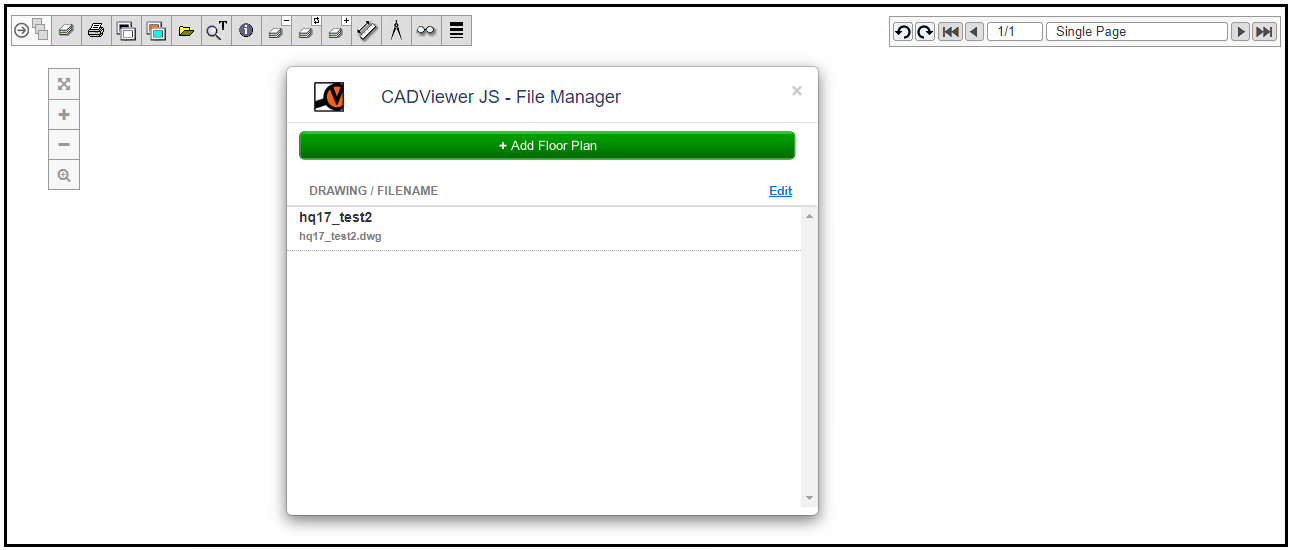

CADViewer Online Demo - View your drawings online

CADViewer Online Demo - View your drawings online

Test CADViewer by uploading your own drawings through the File Modal and view your drawings online. The full interface is activated in this demo version.

Go to Online Demo

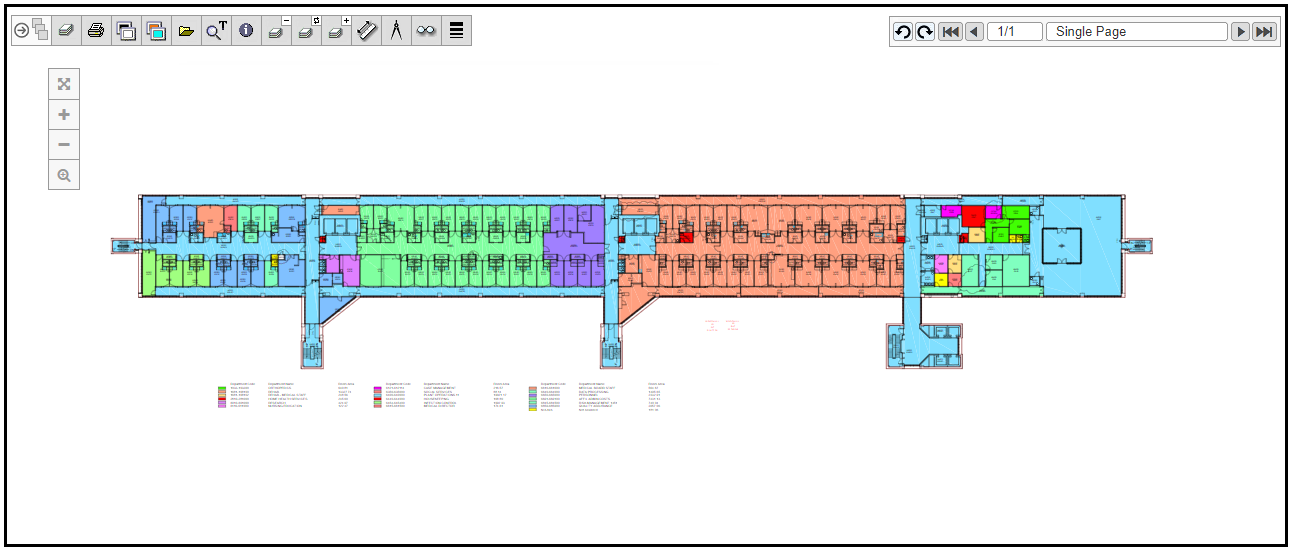

CADViewer Standard Interface

CADViewer Standard Interface

CADViewer Pro is set up with interactive modals for file-loading and redlines. Links with AutoXchange 2020 for own server on-the-fly conversion control of CAD drawings.

Go to Online Demo

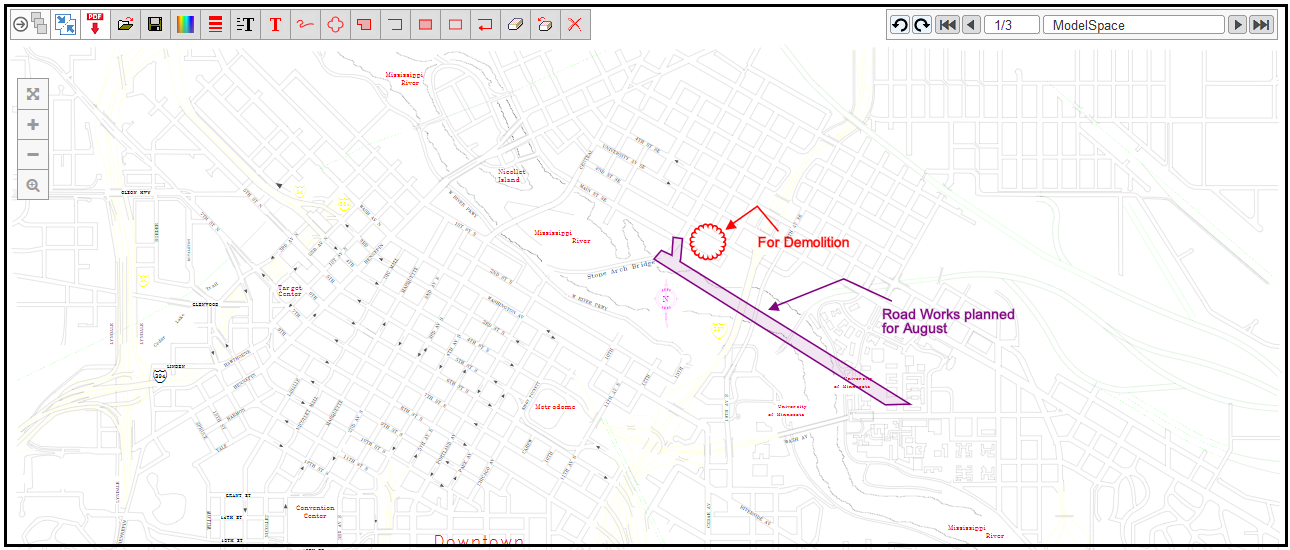

CADViewer Redlines

CADViewer Redlines

Redline control icon disk displayed at load. Links with AutoXchange for own server on-the-fly conversion control of CAD drawings.

Go to Online Demo

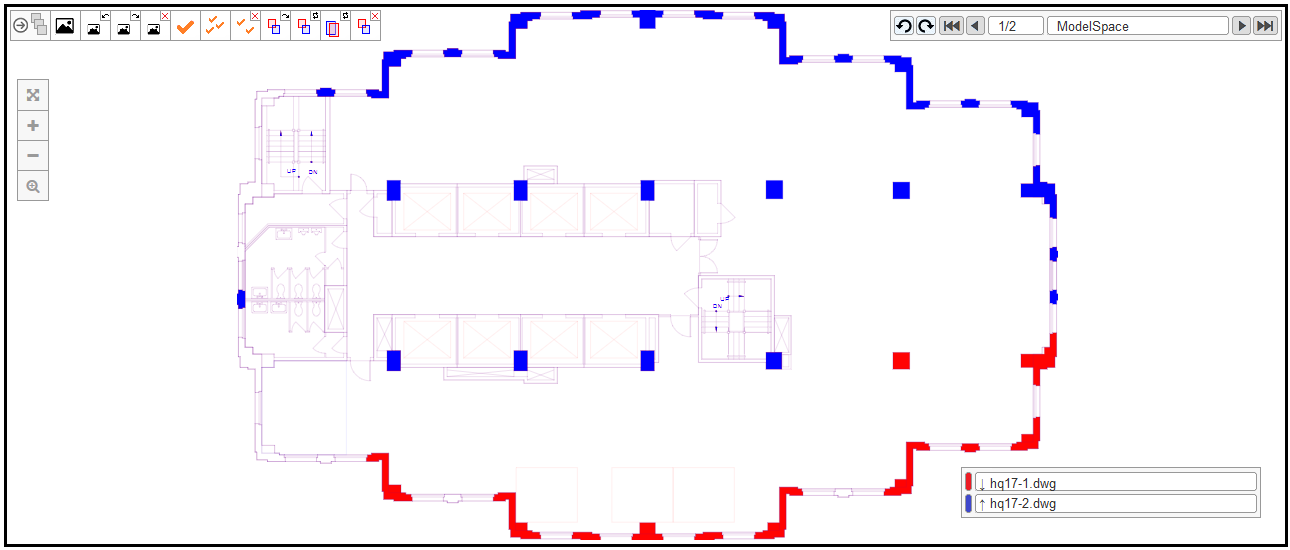

Compare Drawings

Compare Drawings

Sample with compare drawings menu page activated (icon menu page three). Two drawings are loaded and overlaid to expose differencies.

Go to Online Demo

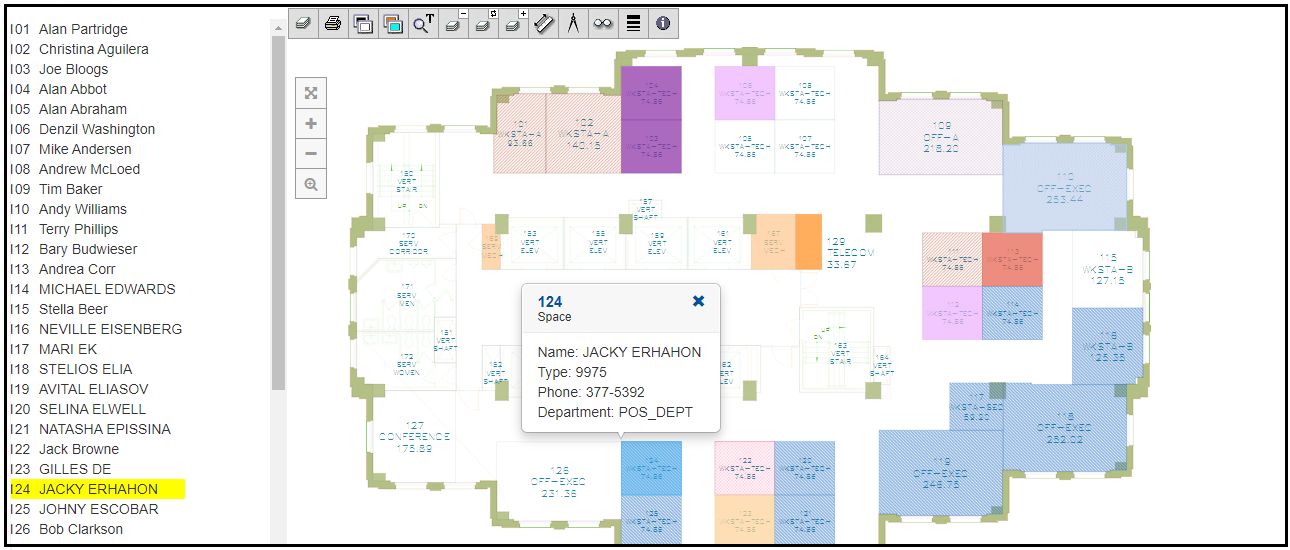

Enable dynamic interactive highlight with MySQL data

Enable dynamic interactive highlight with MySQL data

Visual Query: AngularJS and PHP are used with the CADViewer API to dynamically load content from a MySQL database for two-way interaction with content in drawing.

Go to Online Demo

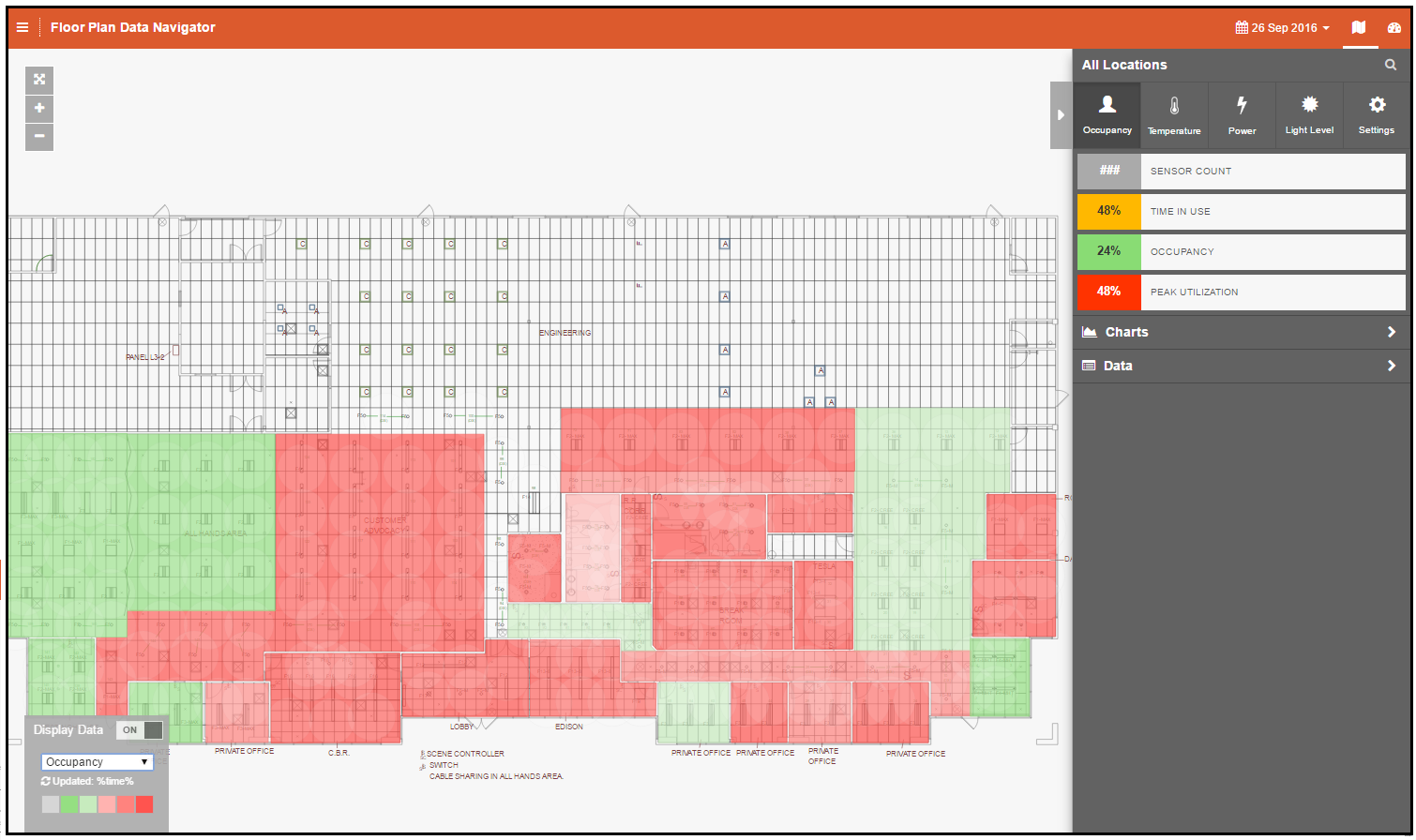

Advanced Sensor Readings pulled from an online Lighting System.

Advanced Sensor Readings pulled from an online Lighting System.

Sample implementation using CADViewer to dynamic highlight locations and sensor cones based on senser readings of Occupancy, Temperature, Power and Light Level

Go to Online Demo
